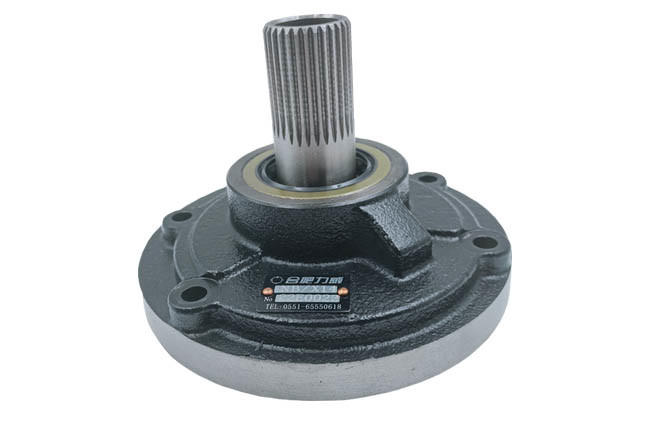

NB/X14-30B Transmission Charging Pump
The NB/X14-30B transmission charging pump is an internal gear structure, installed in the forklift gearbox, and connected with the torque converter. Its main function is to supply oil to the hydraulic system of the gearbox.
PRODUCT SPECIFICATIONS
| No. | Item | Data |
| 1 | Nominal Displacement (ml/r) | 14 |
| 2 | Rated Pressure (MPa) | 1.5 |
| 3 | Max. Pressure (MPa) | 2 |
| 4 | Min. Speed (r/min) | 600 |
| 5 | Rated Speed (r/min) | 2500 |
| 6 | Max. Speed (r/min) | 3000 |
| 7 | Weight (kgs) | 3.7 |
| 8 | Part Number | 3EB-13-22043, 31340-25H0 |
FEATURES
1. The body is more wear-resistant.
2. Low friction resistance of gears.
3. High dimensional accuracy and stable performance of gear hole and oil passage hole.
4. Available with 19-tooth spline and 30-tooth spline.
5. Widely used in Japanese brand forklifts, such as part number 3EB-13-22043, 31340-25H0
APPLICATION
Transmission charging pump for ALLIS-CHALMERS & Japanese brand forklifts : 3EB-13-22042 Also listed as: KO3EB-13-22042 Category: Charging Pumps
PUMP - TRANSMISSION. Category: FORKLIFT PARTS. This part can also be found Under the Following Part Numbers: AC3EB-13-22042, AC3EB-13-22042 3EB-13-22042 3EB-13-22042 3EB-13-22042 AC3EB1322042 AC 3EB1322042 3EB-13-22042 3EB1322042 3EB1322042 3EB1322042.
OEM Number: 3EB-13-22042
Model Applications: T-C-M FD20-30T3/T4, FG20-30T3/T4, FD10-18-T13/T14, FG10-18-T13/T14;FD20-30-12/-14, FG20-30-12/-14;Nissan
Additional Specs: 30teeth
PACKAGING & DELIVERY
Packaging Details: 1 pc/box, 3.55 kgs/box; 4 boxes/carton, 14.6 kgs/carton
Port: All ports in China
Lead Time:
| Quantity (pieces) | Stocking Goods | Out of Stock |
| Lead time (days) | 1~3 days | To be negotiated |
Product Tags:
|
|
Hydraulic Transmission Charging Pump 3T forklift spare parts 3EB-13-22042 Images
|
